This is Mr. Burnham Project:
This is where you will post your Robot progress. Post Engineering Plans, Sketches, Links and Photos.  See Robot Club Rubric for the quality and expectation of the posts contents.
Overview: This robot is a small 2 wheeled / caster platform that I (Mr. Burnham) built from scratch.  I figure if my students have to build a robot, I should too... Plus this project page can serve as an example of what I'm looking for when you (my Students) update and edit your projects and blogs.
Historical Team Members:
2018-2019 - AM/PM Jim Burnham

Tuesday, March 5, 2019

Jim.The.STEAM.Clown - AM/PM - 30 - Power Harness

Next Steps:
  1. Mount the on/off switch.  right now it's just dangling
  2. Mount a battery holder on the bottom part of the Bot.  Right now the battery is just loose and I have taped it down.
  3. I need to look at changing the motors for a higher gear ratio, so they will run slower
  4. I need to pick a method to sense the edge of the table
  5. Right now it runs with an Arduino Controller, but I was thinking of adding a Raspberry Pi too
What jim.The.STEAM.Clown Did Today:

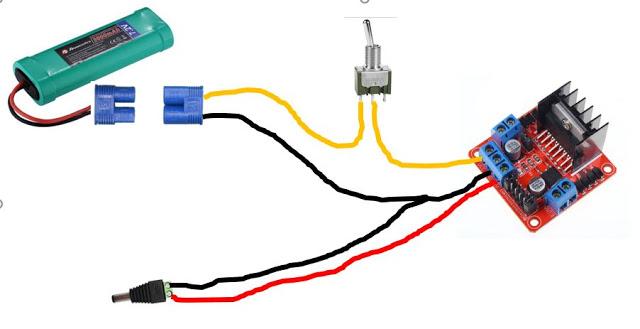

  • This is the way I connected the EC3 battery connector.
    • These are better connectors than the default molex ones that come default on the batteries.
    • I had to be careful not to short the battery when I cunt the wires.  If you do this, make sure you only cut one battery wire at a time... otherwise you could short the battery as you cut through both wires.
  •   Having a Switch to turn on/of power really helps

Thursday, February 28, 2019

Jim.The.STEAM.Clown - AM/PM - 30 - WoHooooo got the motors running

Next Steps:
  1. I need to look at changing the motors for a higher gear ratio, so they will run slower
  2. I need to pick a method to sense the edge of the table
  3. Right now it runs with an Arduino Controller, but I was thinking of adding a Raspberry Pi too
What jim.The.STEAM.Clown Did Today:

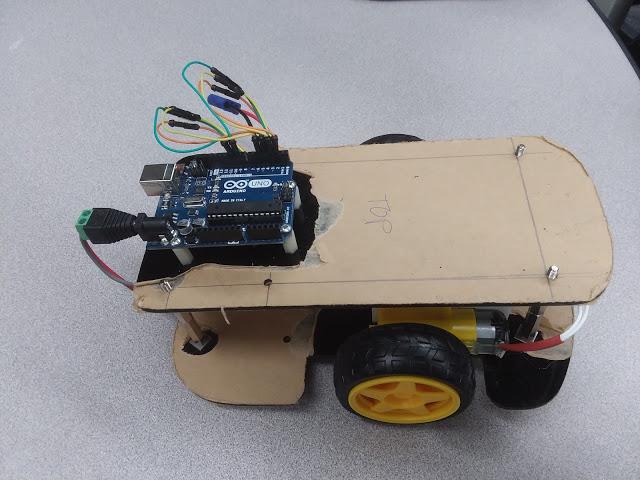

  • Mounted the original motors.  These may be too low of a gear ratio for a table top bot.  They seem to work fine for on the ground.
  • I soldered on wires to the motors and then tested that they worked with a 5 V DC power supply.  They worked.
  • I then connected the motor controller, and tested the Arduino code.  I’ll add links later to the Resource page.

Monday, February 25, 2019

Jim.The.STEAM.Clown - AM/PM - 30 - Cut out the Frame for the Back Bug

Next Steps:
  • I need to look at changing the motors for a higher gear ratio, so they will run slower
  • I need to pick a method to sense the edge of the table
  • Right now it runs with an Arduino Controller, but I was thinking of adding a Raspberry Pi too
